How to Measure for Your Custom Cabinet Insert

Getting the right fit starts with a few simple measurements! Follow this quick guide to make sure your custom insert is sized correctly.

Step 1: Measure Your Cabinet Opening

Measure the width (left to right) and height (top to bottom) of the opening where your insert will go.

- Record your measurements in inches.

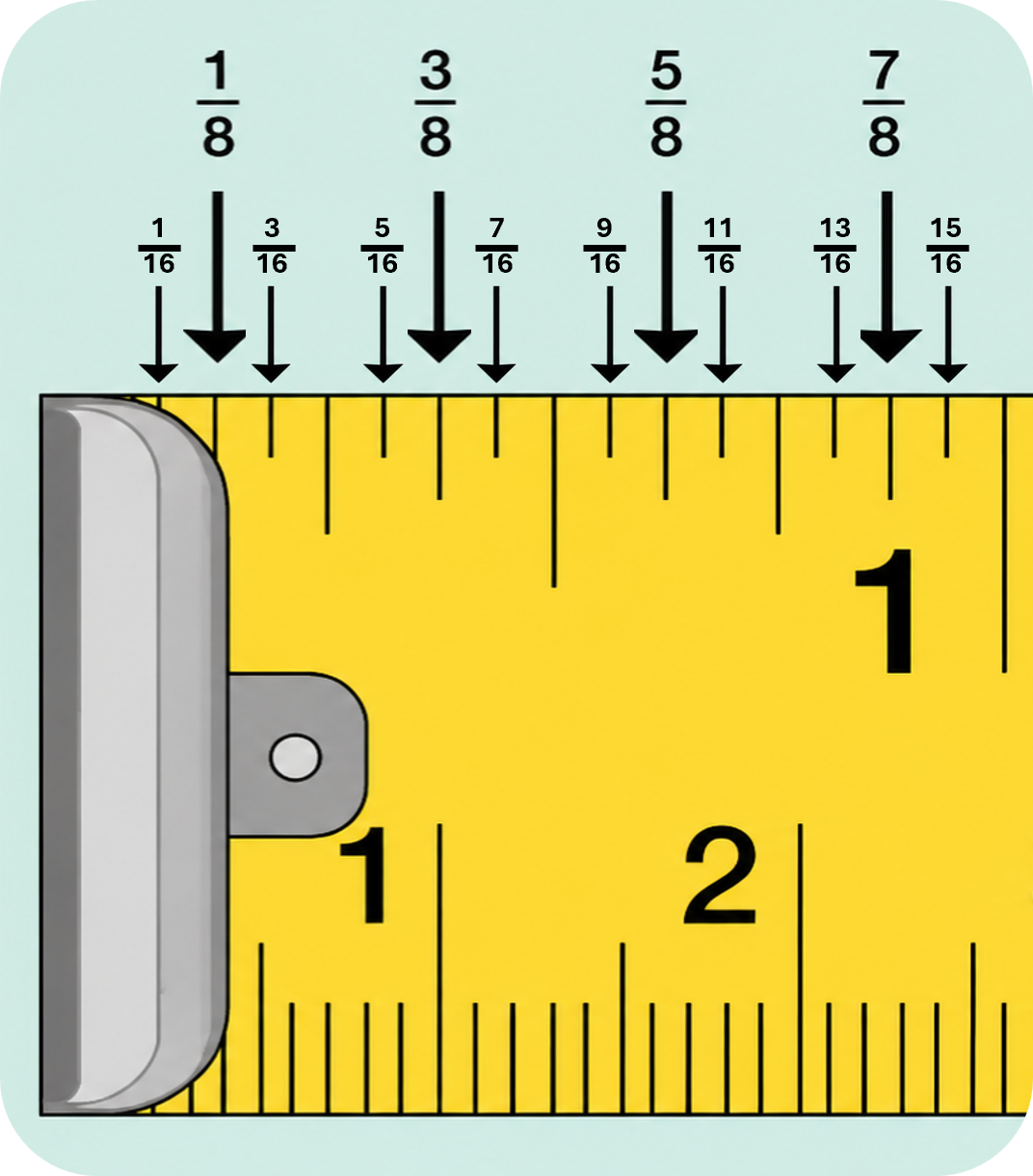

- Round to the nearest 1/8 inch.

- Double-check your measurements before continuing!

Step 2: Choose Your Mounting Style

Back-Mounted Inserts

For inserts installed behind the cabinet opening, subtract 1/8 inch from both the width and height of your measurements. This allows a little clearance for installation.

Front-Mounted Inserts

For inserts mounted to the front of the cabinet opening, use your full measurements. No subtraction is needed!

Step 3: Check Your Measurements

Here's a quick example using a cabinet opening measuring 12" wide × 18" tall:

Mounting Style	Final Insert Size
Back-Mounted	11 7/8" × 17 7/8"
Front-Mounted	12" × 18"

You're Ready to Get Started!

Enter your final measurements in our custom order form, and we'll take it from there!

Have questions about measuring or mounting? We're always happy to help. Reach out to us at Support@nealsmithdesignsUSA.com.
